Hire Kobelco 22.5T Excavator

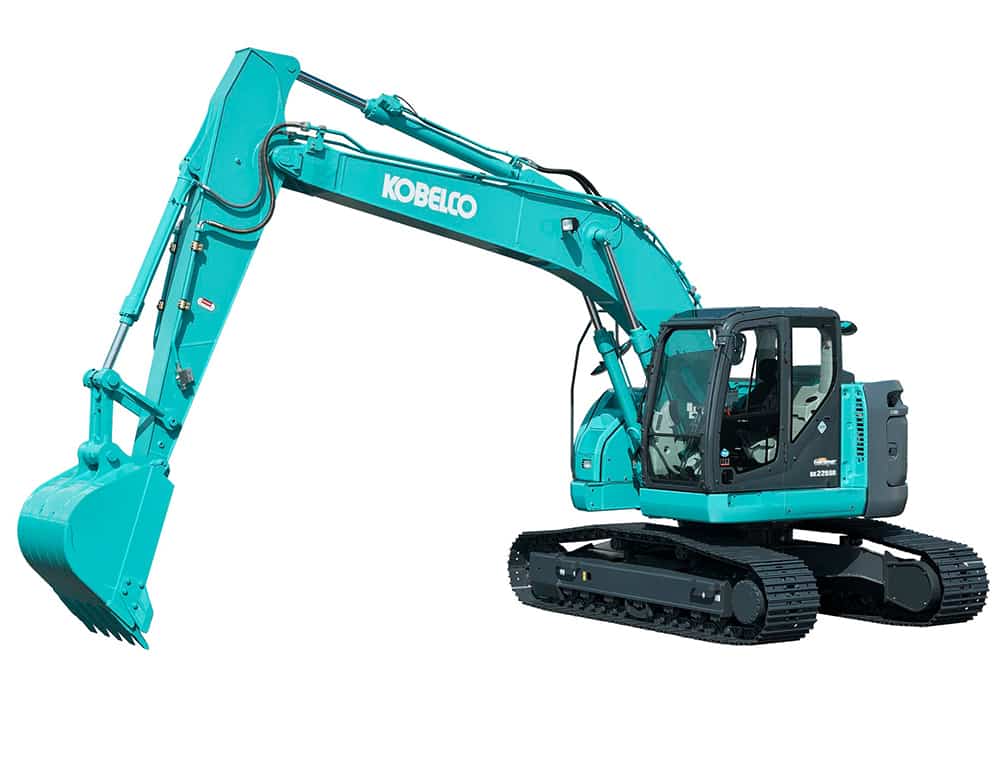

Kobelco 22.5T Excavator

  • Powerful travel, digging, greater swing power and shorter cycle times.
  • Compact design means operators require less than 4 metres of working space.

Transport Dimensions
Length, Width & Height: 8.69 x 2.8 x 3.1 m
Operating Weight: 22,500 kg

Working Range
Max. Digging Depth: 6.59 m
Max. Digging Reach: 9.71 m

Refilling Capacities
Fuel Tank: 300 L
Hydraulic Oil Tank: 114 (230) L

Engine
Rated Power Output: 118 kW
Rated Torque: 572 Nm

Hydraulic System
Max. Pump Flow: 2 x 220 + 20 L/min
Standard Auxiliary: -
